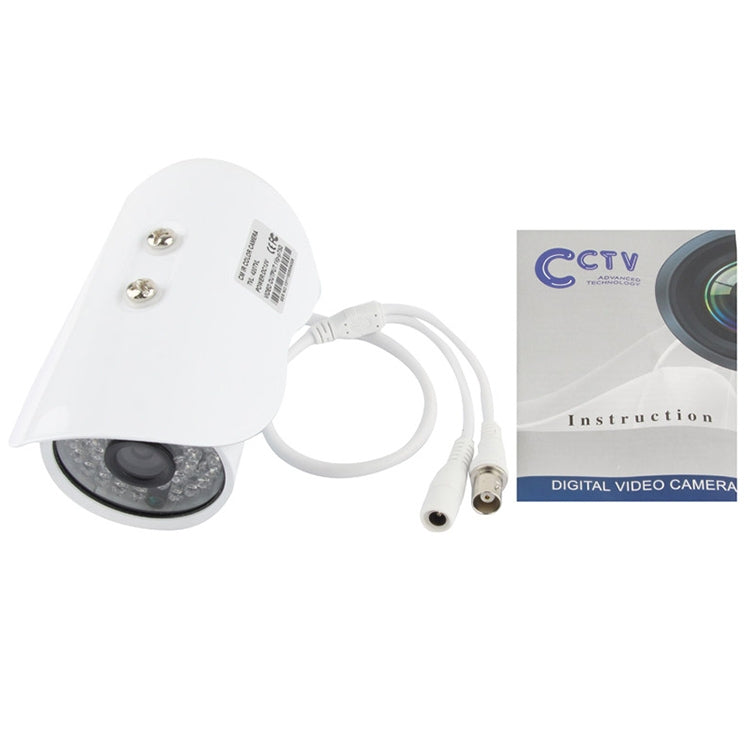

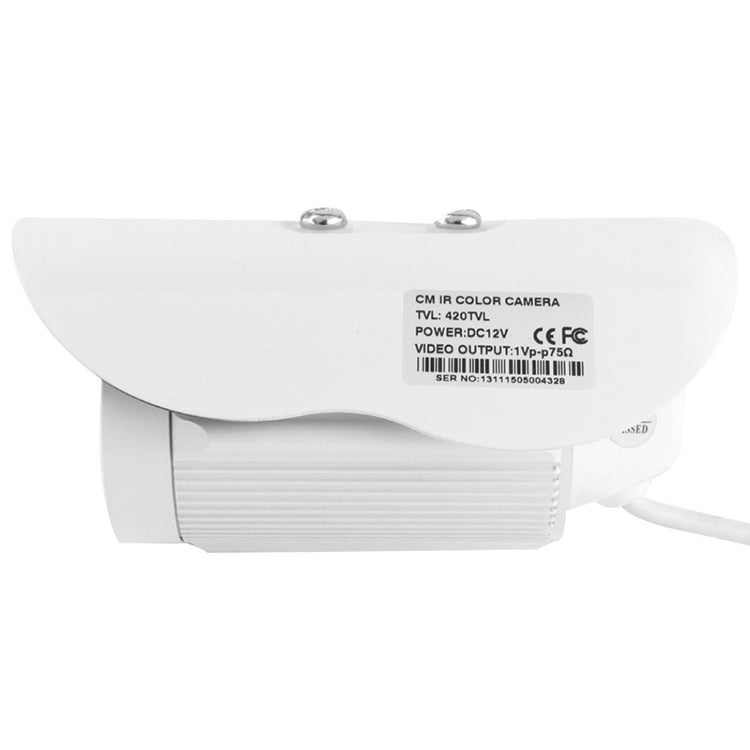

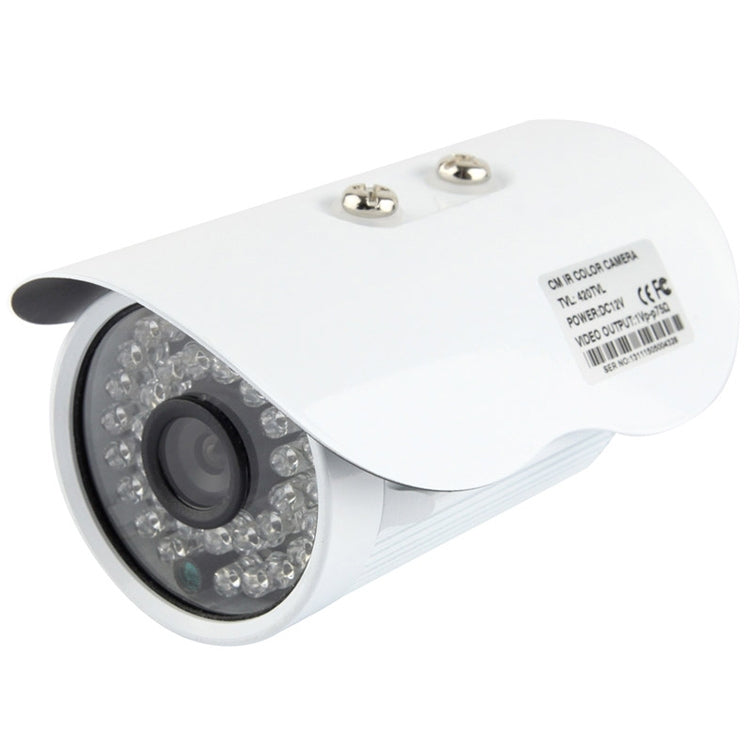

CMOS 420TVL 6mm Lens Metal Material Color Infrared Camera with 36 LED, IR Distance: 20m, CMOS 103060 36LED

Video:
1. Imaging Sensor: CMOS
2. Scanning System: 2:1 Interlace
3. Total Pixel: PAL: 752H x 582V, NTSC: 768H x 492V
4. Horizontal Resolution: 420TVL
5. Illumination: 0lux with IR ON
6. S/N Ration: Above and equal 52dB
7. Video Output: 1.0Vp-p/75 ohm
8. Correction: 0.45
9. Frequency: H: 15.736KHz, V: 15.625KHz, V: HZ
10. Sync. System: Internal Synchronization
11. Day & Night: Auto Color to B/W
12. Electronic Shutter Speed: 1/50-1/10,000s
13. Cable Length: 40cm
Operational:
1. White Balance: ATW
2. BLC: AUTO
3. AGC: Auto/Manual
Lens:

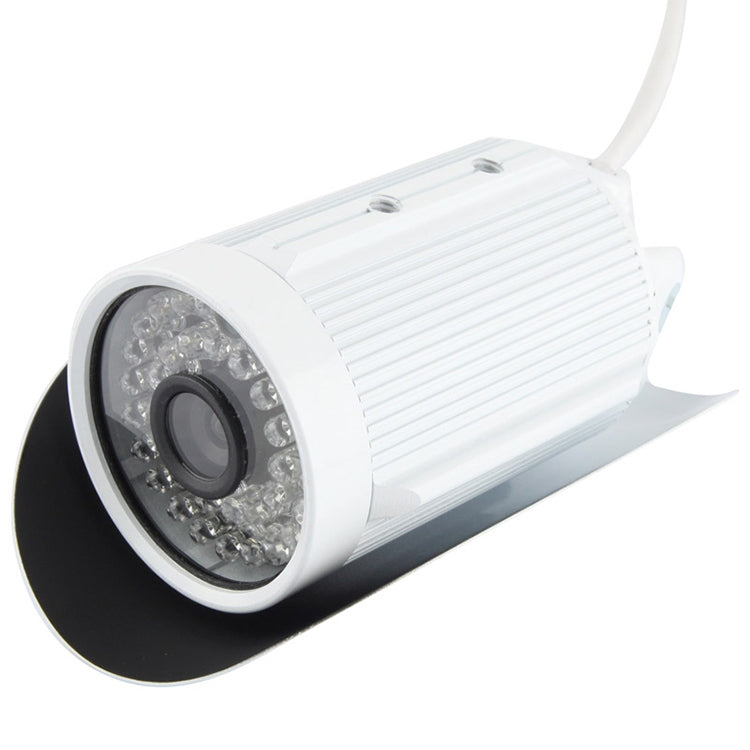

1. 36 IR LED
2. IR Distance: 20m
3. Lens Type: 6mm Fixed Lens (Standard)
4. Mount Type: CS
5. Adjust the angle: Horizontal 90 degrees
Electrical:
1. Power Supply: DC12V+/-5%
2. Power Consumption: Less and equal 6W

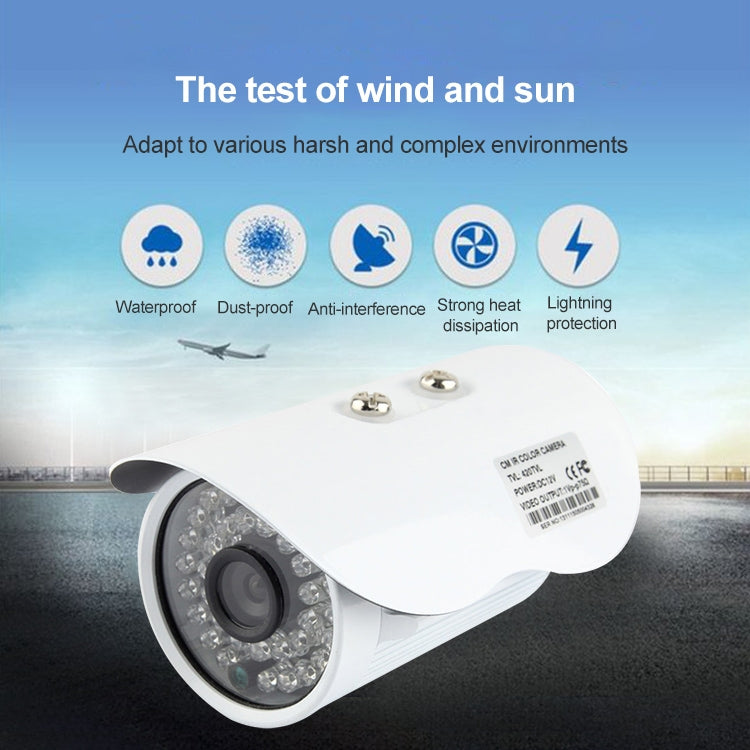

Environmental:
1. Work Consumption: Less and equal 85%RH
2. Operation Temperature: -15-80 degree
Physical:
1. Case Material: Metal
