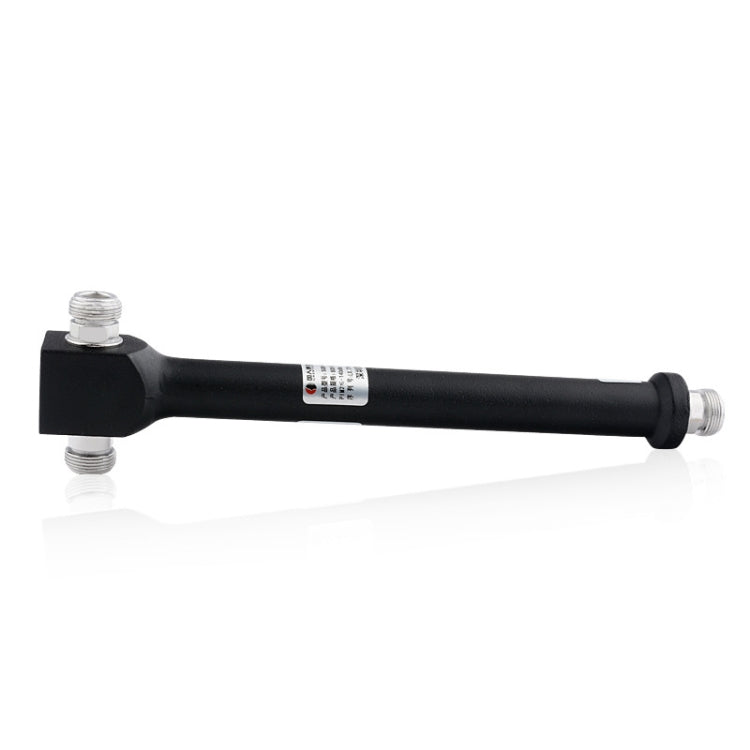

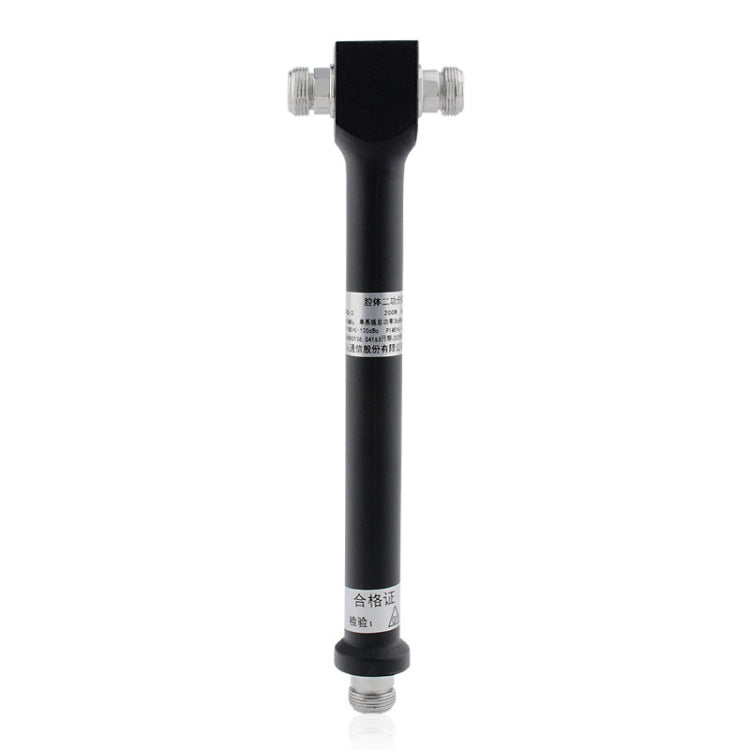

800-2500MHz 2 Way Cavity RF Power Splitter/Power Divider, ST-MR02BLC

1) Using micro strip structures, in-band flatness is good, high isolation, insertion loss is small, Standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.

* Electrical Specifications:

1) Type: 2-way Cavity Power Divider

2) Frequency: 800 ~ 2500MHz

3) Insertion loss(distribution ratio)-db:<=3.1DB

4) Isolation (dB): <=27

5) Nominal Impedance: 50 Ohm

6) VSWR: 1:1.2

7) Max. Power(MAX)(W) :50

8) Connector: N female

* Mechanical Characteristics:

1) Environment temperature:-25~+55 Degree C

2) Relative humidity: 5~95%

3) Size: 210mm X 58mm x 24mm

4) Weight: 129g
