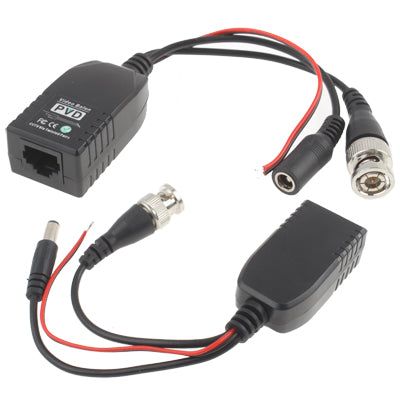

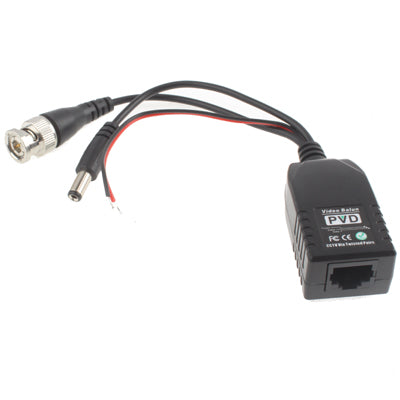

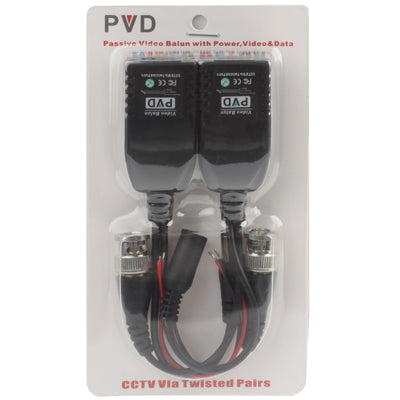

Passive Power/Video/Data Balun Transmitter RJ45 Cat5, PVD-

Features

1) Power-video-audio/ data signals are routed via UTP and RJ45.The unit is a passive device that allows the transmission of real-time monochrome or color video over unshielded twisted-pair telephone wire

2) NTSC, PAL, and SECAM video formats

3) 60Db Crosstalk and noise immunity

4) Compact size and easy installation

5) Built-in transient suppression protection

6) Save cable cost 30%-50%

Specifications;

1) Frequency response: DC 8MHZ

2) Attenuation: 0.5Db typ

3) CMRR: 60DB

4) Impedance: BNC: 75Ω, RJ45: 100Ω

5) Working temperature: -10 to 70°C

6) Storage temperature: -30 to 70°C

7) Humidity: 0 to 95%
