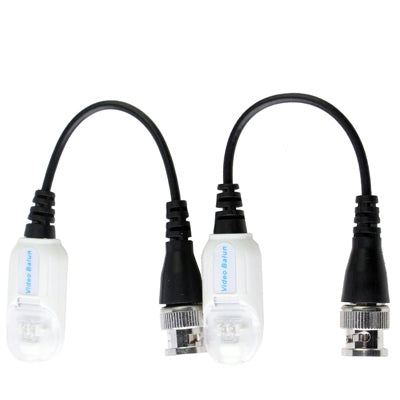

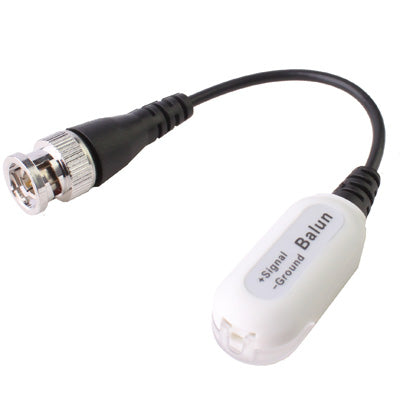

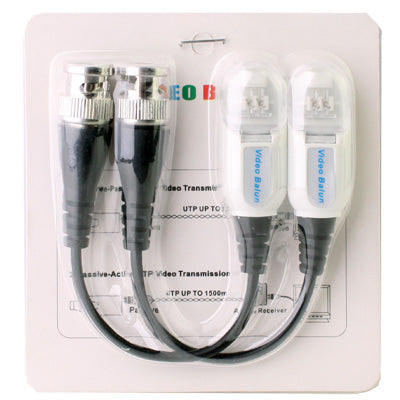

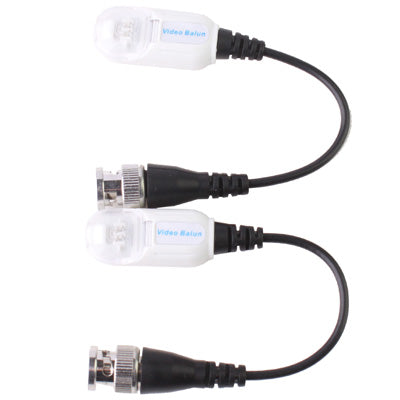

Features 1. Fulll-motion CCTV video at distances up to 330m when used with any passive transceiver 2. Up to 1500m with any active UTP Video receiver 3. Tool-less, installs in seconds, no need to strip the wires 4. NTSC, PAL, and SECAM video formats 5. No power required 6. 60dB crosstalk and noise immunity 7. Compact size and easy installation

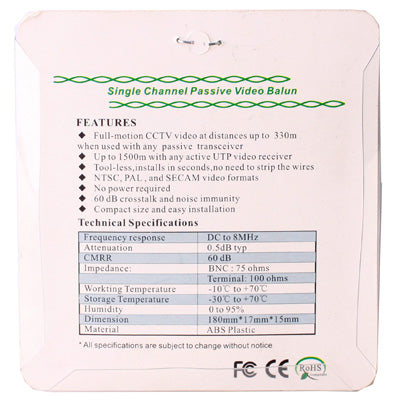

Specifications 1. Frequency response: DC to 8MHZ 2. Attenuation: 0.5dB typ 3. Impedance: BNC:75 ohms, CMRR: 60dB 4. Terminal: 100 ohms 5. Working Temperature: -10 degree C to + 70 degree C 6. Storage Temperature: -30 degree C to + 70 degree C 7. Humidity: 0 to 95% 8. Dimension: 180mm x 17mm x 15mm
