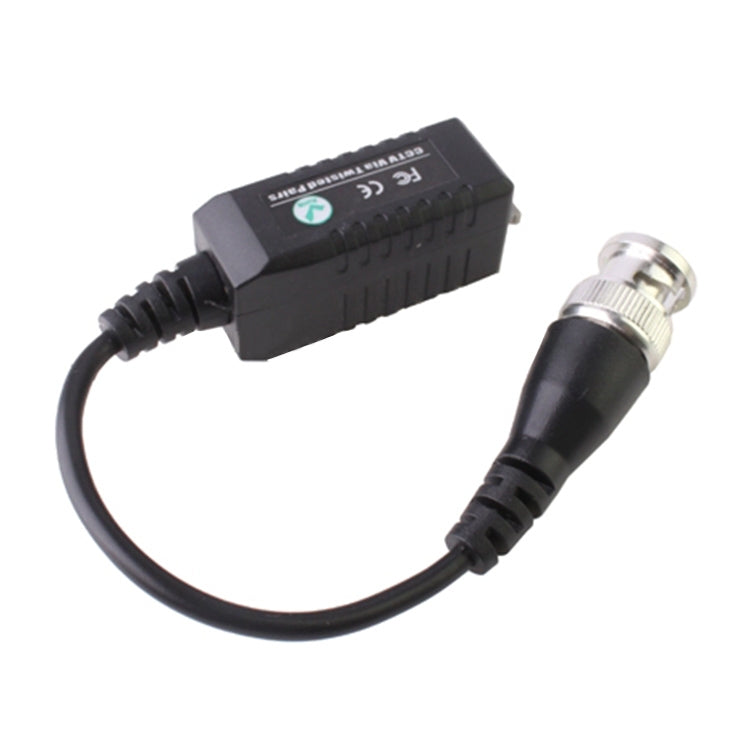

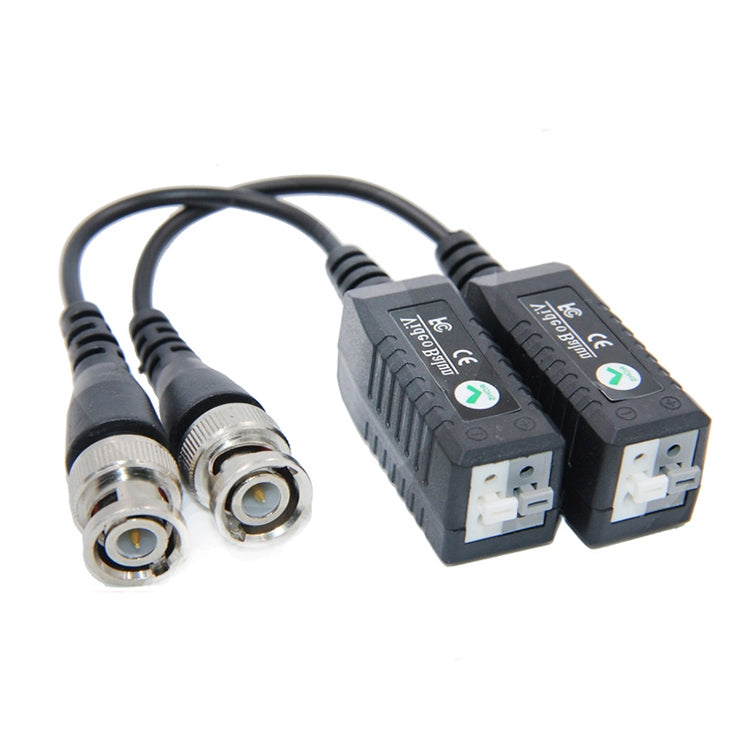

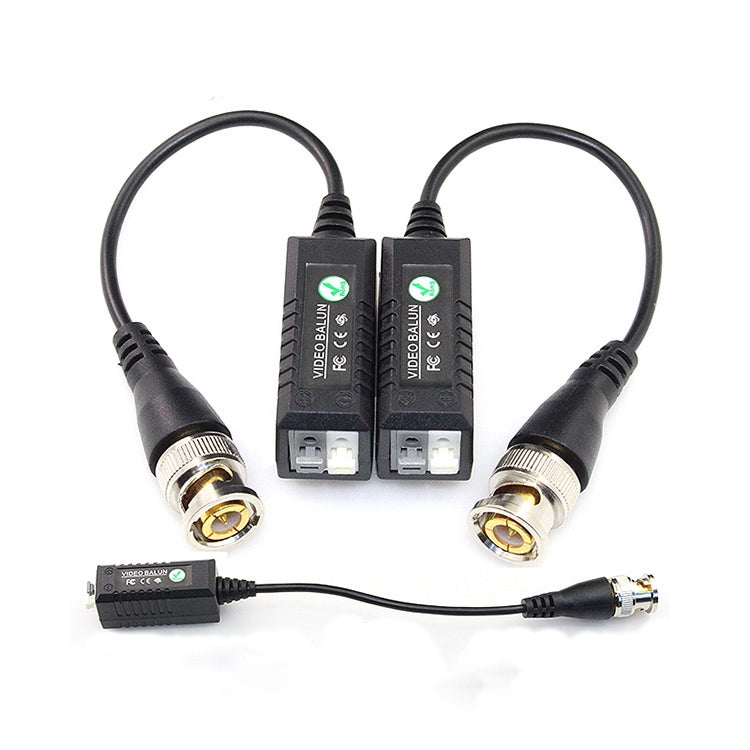

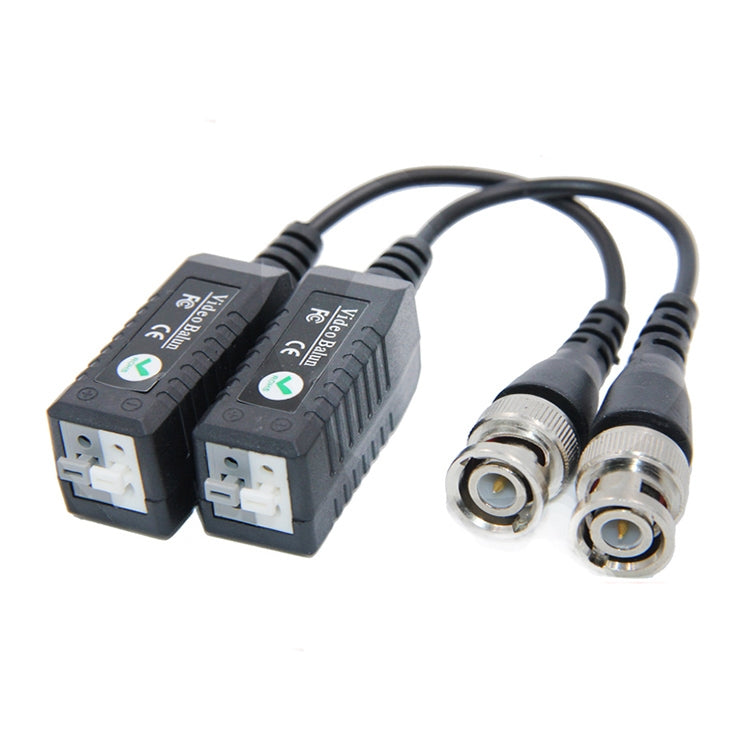

CCTV Via Twisted Pairs Passive UTP Video Transceiver, 103C

CCTV Via Twisted Pairs Passive UTP Video Transceiver, 103C

Regular price $24.92 AUD
Regular price Sale price $24.92 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Option
Features:
1. Fulll-motion CCTV video at distances up to 330m when used with any passive transceiver
2. Up to 1500m with any active UTP Video receiver

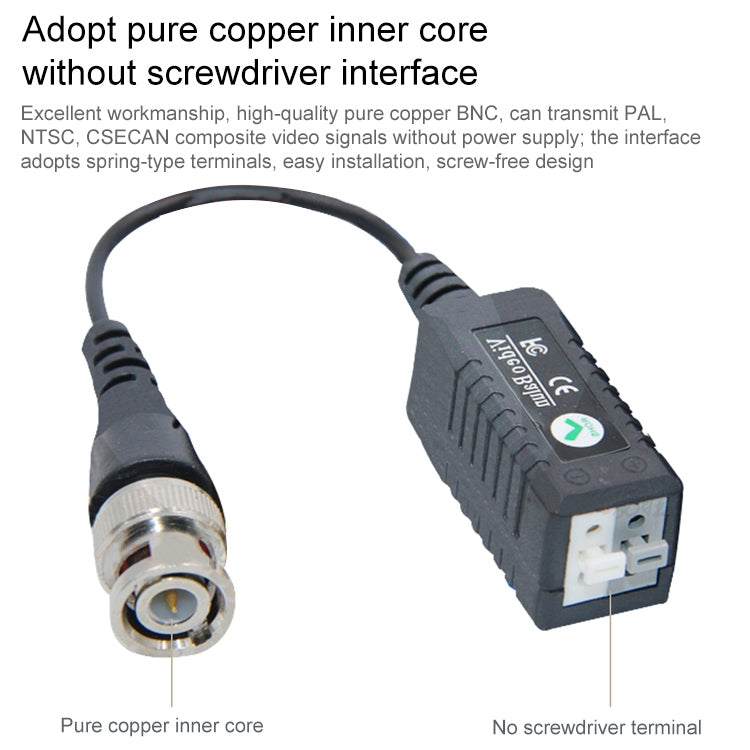

3. "Press-Fit" terminal block
4. NTSC, PAL, and SECAM video formats
5. No power required
6. 60dB crosstalk and noise immunity
7. Compact size and easy installation

Technical Specifications:
1. Frequency response: DC to 8MHZ
2. Attenuation: 0.5dB typ
3. Impedance: BNC:75 ohms, CMRR: 60dB; Terminal: 100 ohms
4. Working Temperature: -10 degree C to + 70 degree C
5. Storage Temperature: -30 degree C to + 70 degree C
6. Humidity: 0 to 95%
7. Dimension: 39mm x 16mm x 19mm
